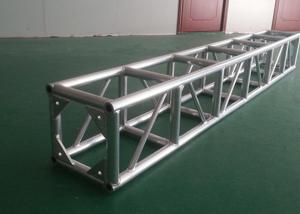

Heavy Duty Safety Square Aluminum Truss Spigot Connector SGS Approved

Name: Heavy Duty Safety Square Aluminum Truss Spigot Connector SGS Approved
Brand: Meile
Price: 1 USD

Brand Name : Meile

Model Number : ZC-112

Certification : CE, SGS

Place of Origin : Guangzhou, Guangzhou Province, China

MOQ : 15 meters

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000m/month

Delivery Time : 7-10 work days

Packaging Details : 1. the aluminum frame is packed by buble filme; 2. the screw connector is packed by carton box or flight case; 3. customized as your request

Truss specificaiton : 400*400mm

Truss type : Screw/ Bolt truss

truss shape : square or circular or triagle or customized

Frame material : Aluminum alloy

Main tube : Dia.50*3mm thickness

Vice tube : Dia.30*2mm thickness

Contact Now

**Square Aluminum Truss 400mm * 400mm Bolt Truss Heavy Duty Truss Display**

Truss Description

Aluminum truss systems are designed for a variety of applications and can be used to support lighting, sound equipment, digital signs and banners. It can be made into different sizes, length and shape, including straight lengths, corners and curves; They are produced according to European standard EN13814 and welding EN1090. Installation manual and video are available for your installation. And our professioal engineer could be assigned to your local to make the installation guidence if you think it is necessary.

Aluminum Truss Specification

Section	Main Tube	Max. Span	Loading capability	Category
200*200mm	φ30*2mm	10m	75kg	Light Duty Truss
300*300mm	φ50*3mm	12m	400kg
350*350mm	φ50*3mm	13m	400kg
400*400mm	φ50*3mm	14m	500kg	Middle Duty Truss
450*450mm	φ50*3mm	15m	550kg
400*600mm	φ50*3mm	16m	600kg
500*600mm	φ50*3mm	18m	650kg	Heavy Duty Truss
520*760mm	φ50*4mm	20m	1000kg
600*760mm	φ50*4mm	24m	1500kg

Features

1 . Material: Aluminum alloy 6082-T6/6061-T6,

2 . Connector type: bolt or spigot,

3 . Color: silveryor black or customized is available,

4 . Shape: square, arch, circular, triangle or ladder truss,

5 . Truss unit length: straight truss 0.5m-4m per piece or customized

6 . Truss size: 200*200mm, 300*300mm, 350*350mm, 400*400mm, 450*450mm, 400*600mm or 520*760mm. we choose the truss size accroding to the whole truss project.

7 . Feature: light weight, strong, easy to set up and remove

9 . Usage: roof truss system, concert truss, event truss, fashion show light truss, auto show lighting truss, LED screen truss, speaker truss, exhibition booth truss, staging truss, lighting truss,etc.
